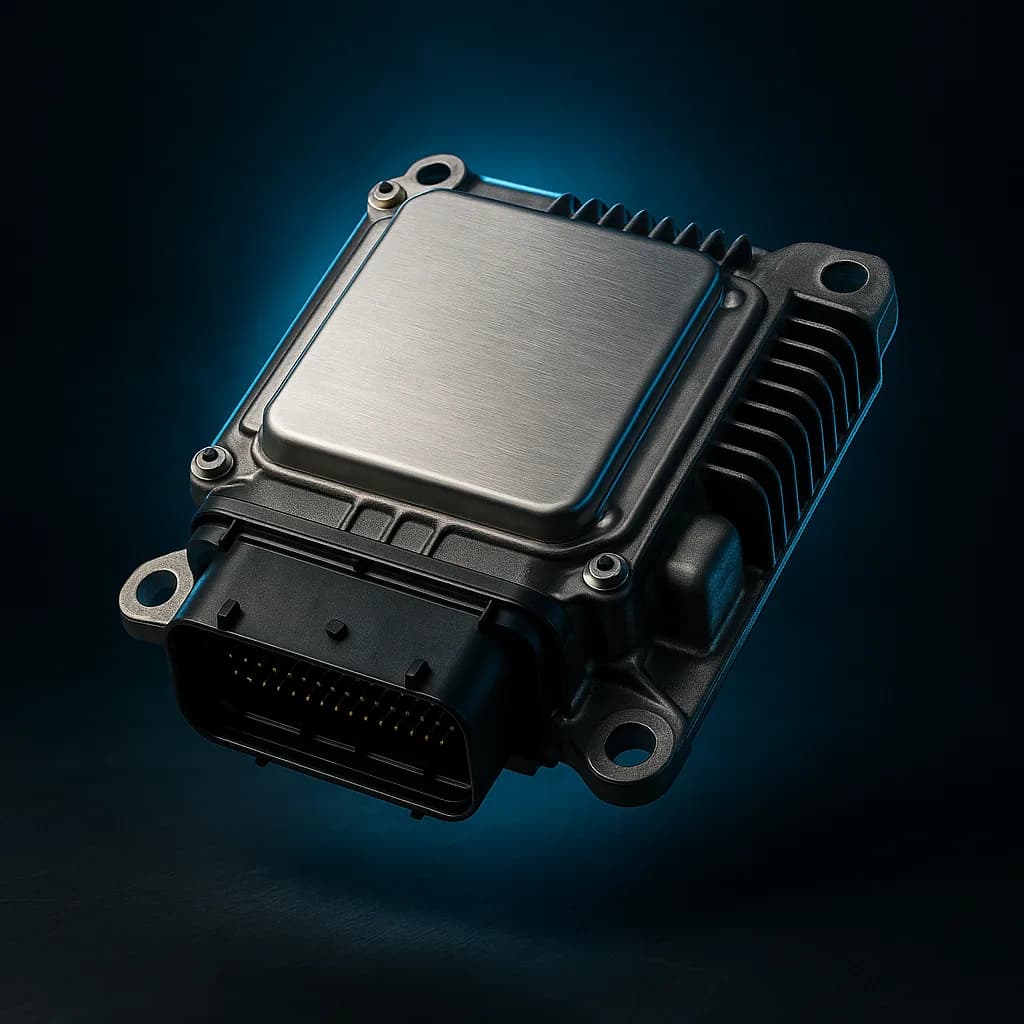

ZF Transmission ECU TCM ZF 8HP50 Tested Used — Checked Part

INCARLINE offers for sale a ZF 8HP50 automatic transmission ECU (TCM) from the ZF 8HP range. This is a tested used part sold as is, without default coding or pairing. This module controls the hydraulic and electronic management of the transmission, coordinates gear shifts, and communicates with the engine ECU and safety systems. For this type of unit, adaptation or programming is generally necessary after installation to properly integrate it into the vehicle. Depending on your needs, you can add optional services via the configurator (e.g., cloning from the old TCM, programming, operations related to the immobilizer when technically possible). Before purchasing, check that the TCM reference matches yours and that you are targeting the 8HP50 variant.

Overview: Role of the ZF 8HP50 Automatic Transmission ECU (TCM)

The automatic transmission ECU, often called the TCM (Transmission Control Module), is the electronic unit that orchestrates the operation of the transmission. In the ZF 8HP family, known for its eight speeds and wide use in modern sedans and SUVs, the ZF 8HP50 variant is intended for intermediate torque applications. This TCM continuously measures the state of the gearbox (shaft speeds, hydraulic pressure, oil temperature), exchanges information with the engine ECU, and controls the actuators to ensure smooth gear shifts and management adapted to driving conditions.

Specifically, the TCM ZF 8HP50 calculates the timing of gear changes, modulates pressures to engage internal clutches, and manages protection strategies (limp mode in case of anomaly, limiting transmitted torque, etc.). It also participates in the vehicle's network communication by transmitting data to other ECUs. An unsuitable or improperly programmed TCM can cause generic symptoms such as harsh shifts, a safety mode, a warning light on the instrument cluster, or diagnostic error messages. This is why adaptation/programming is generally required after replacement in this type of architecture.

The TCM ZF 8HP50 is specific to this variant of the ZF 8-speed gearbox. The different sub-models of the 8HP series (for example, other torque indices) are generally not interchangeable without deep adaptation, as they differ in their software calibrations, sometimes in their interfaces and hydraulic parameters. Precise identification of the reference is therefore essential before any order.

Your ECU at Incarline: Tested Used Part, Sold As Is + OPTIONAL Services

The TCM ZF 8HP50 offered by INCARLINE is a tested used part sold as is. Functional checks are carried out to verify electronic communication and proper behavior on the bench when applicable to the model. The part is supplied uncoded and unpaired by default: adaptation/programming is generally necessary after installation for compliant operation. Warranty and quality control terms apply according to our conditions, available on the website.

Because each vehicle equipped with a ZF 8HP50 has its own calibration, you can, if necessary, select optional services orderable via the configurator (not included by default), such as cloning based on your old TCM when reading is possible, programming/pairing according to vehicle data, or certain operations related to the immobilizer when technically feasible. These operations aim to help you bring the purchased unit closer to the configuration expected by your vehicle. If applicable, a standard exchange may also be offered as an option depending on availability.

Key points before purchase and installation:

• Ensure you are targeting a TCM of the ZF 8HP50 variant and that the reference matches yours.
• Anticipate a step of adaptation, learning, or coding after installation, common on these transmissions.
• If you do not have the equipment to pair the TCM yourself, add the appropriate optional service via the configurator.
• If replacing because your original TCM is faulty, cloning (if technically feasible) can facilitate the recovery of certain parameters.

In summary, this used TCM ZF 8HP50 offers you a replacement solution based on a tested and checked part. The unit is delivered raw, without default programming, to preserve the widest possible compatibility. If your project requires additional support (cloning, programming, or pairing operations), you can indicate it directly from the product configurator to add these services as an option.
