Bosch MD1CS003 Engine ECU PSA/Stellantis — tested used

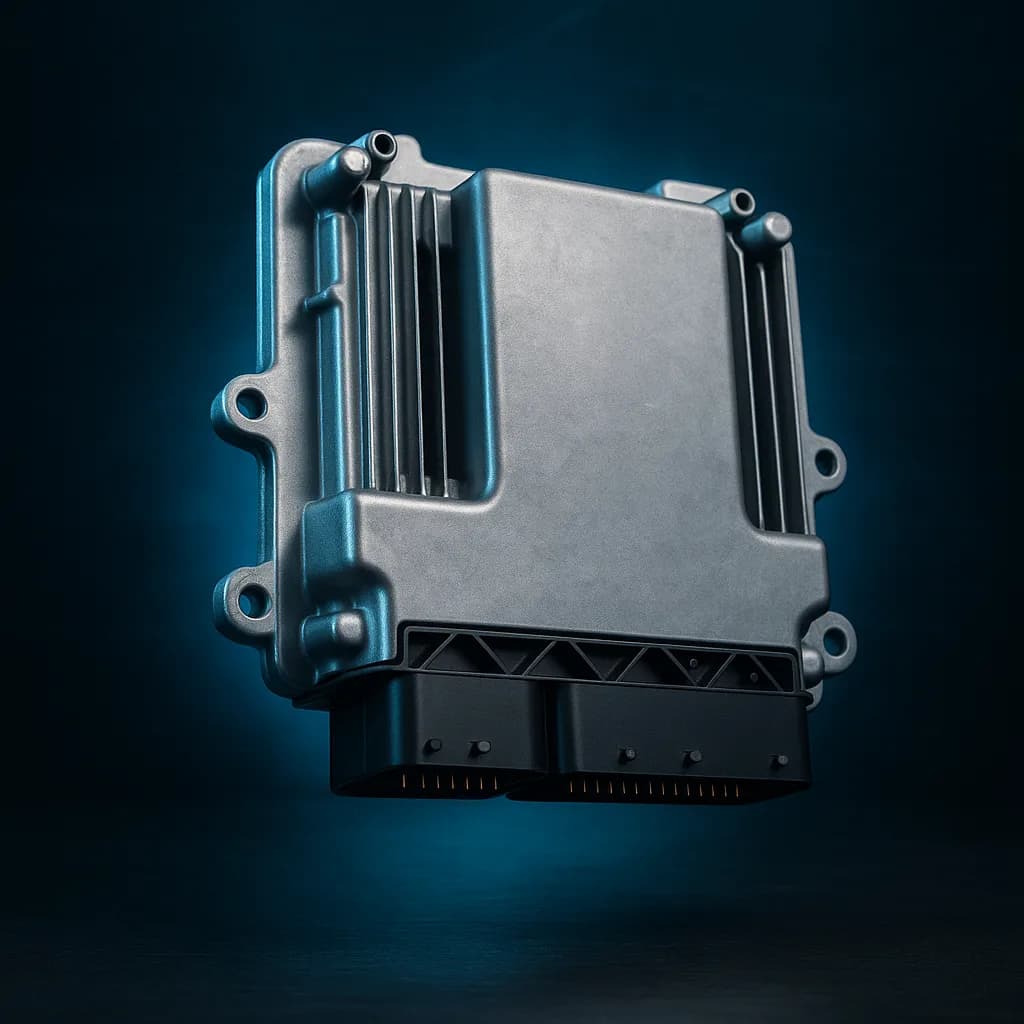

ECU Bosch MD1CS003
ecm

The Bosch MD1CS003 is an engine control unit (ECU) from the Bosch MD1 range, designed to manage injection, ignition, and various emission control components at the heart of the powertrain. Incarline offers this unit as a tested used part, intended for vehicles from the PSA / Stellantis group. The part is sold as is: no cloning, coding, pairing, or immobilizer deactivation is included by default. Coding/pairing is mandatory for the vehicle to start and must be performed as an optional service via the configurator or by an equipped professional. To confirm compatibility, check the ECU label (Bosch MD1CS003) as well as the hardware and software references mentioned below. This product is aimed at garages, mechanics, and individuals wishing to replace a faulty ECU with a sound and tested base, compliant with the Bosch MD1 family, respecting the appropriate references for their PSA / Stellantis vehicle.

Overview: role of the engine control unit (ECU)

The engine control unit orchestrates the real-time operation of the engine based on a network of sensors (rail pressure, temperature, air flow, throttle position, etc.) and actuators (injectors, boost actuators, throttle control, EGR valves). In this architecture, the Bosch MD1CS003 calculates injection timings, manages the requested torque, and coordinates emission control strategies to keep the engine within its operating ranges as defined by the manufacturer. It communicates with other ECUs via the vehicle's multiplexed network to ensure coherence and safety.

Part of the Bosch MD1 family, the Bosch MD1CS003 uses modern 32-bit microcontroller electronics and memory dedicated to calibration. Its metal casing and sealed connectors are designed to withstand the engine environment (vibrations, temperatures, and humidity). It handles key functions such as rail pressure, turbo control, idle management, and engine protections. When replacing, respecting the reference and pairing with the vehicle's immobilizer is essential to restore compliant operation.

Your ECU at Incarline: tested used part, sold as is

The Bosch MD1CS003 offered here is a tested used part. Each unit undergoes essential functional checks (power supply, communication, basic responses) before being stocked. It is provided as is, in its tested state, with its original markings. No cloning, coding, pairing, programming, or immobilizer deactivation is included by default. To start the vehicle, coding/pairing to the immobilizer and VIN is mandatory; it can be performed by an equipped professional or added as an optional service via the configurator. The part benefits from quality control and a warranty of proper functioning according to our conditions.

If you need to go further, you can add optional paid services via the configurator: immobilizer deactivation (immo off), or unlocking if your original ECU is locked; these operations are never included with the part. Cloning is not offered on this reference. For a successful replacement, first validate your HW/SW references, then choose the configuration suited to your use case.

Frequently asked questions

How do I know if my Bosch MD1CS003 ECU is compatible with my PSA/Stellantis vehicle?▶
Check the casing label: the family should indicate Bosch MD1CS003. Then compare the HW/SW numbers with your original part. Compatible examples offered here: HW 0281037200 with SW 9845780880, or HW 0261S101C2 with SW 9836899580. If in doubt, attach photos of the labels when requesting a quote.
Is the Bosch MD1CS003 sold by Incarline tested and guaranteed?▶
Yes: it is a tested used part with basic functionality, accompanied by quality control. A warranty of proper functioning applies according to our conditions, without detailing any timeframe or specific commitment here.
Is the Bosch MD1CS003 new or used?▶
It is a tested used part. It is sold as is, with its original markings, without refurbishment announced as new.
Is coding/pairing required for the Bosch MD1CS003 after installation?▶
Yes, coding/pairing is mandatory for starting (immobilizer/VIN). This step is not included by default; it can be performed as an optional service via the configurator or by an equipped professional.
Can I have my Bosch MD1CS003 cloned?▶
Cloning is not offered on this reference. Optional paid services via the configurator: immobilizer deactivation (immo off), or unlocking if your ECU is locked. They are never included with the part.
What references identify a compatible Bosch MD1CS003 at Incarline?▶
Offered references: HW 0281037200 / SW 9845780880 and HW 0261S101C2 / SW 9836899580, for PSA / Stellantis vehicles. Ensure your old ECU bears the same Bosch MD1CS003 family and matching references.
Can I replace a Bosch MD1CS003 with another version from the Bosch MD1 range?▶
Not recommended: respect the Bosch MD1CS003 family and the HW/SW references corresponding to your PSA / Stellantis vehicle. Mixing variants may prevent pairing and proper functioning.

Compatible vehicles

This ECU is fitted to the following vehicles, among others. Check the exact reference of your unit before ordering.

  • Citroen Berlingo (B9)
  • Citroen C3 (II)
  • Citroen C4 Cactus (I)
  • Citroen C4 SpaceTourer (V)
  • Citroen DS3 Crossback (U)
  • Peugeot 208 --
  • Peugeot 3008 II
  • Peugeot 308 --
  • Peugeot 5008 --
  • Peugeot Expert --
  • Peugeot Partner (B9)
  • Peugeot Rifter (--)
Supported references (2)▶

Check that your ECU's reference appears in the list.

  • 0281037200PSA / Stellantis
    SW: 9845780880
  • 0261S101C2PSA / Stellantis
    SW: 9836899580
143,17 € HTsoit 171,80 € TTCOut of stock
